STAX SRS-X1000

The Ideal Introduction to the World of Electrostatic Sound

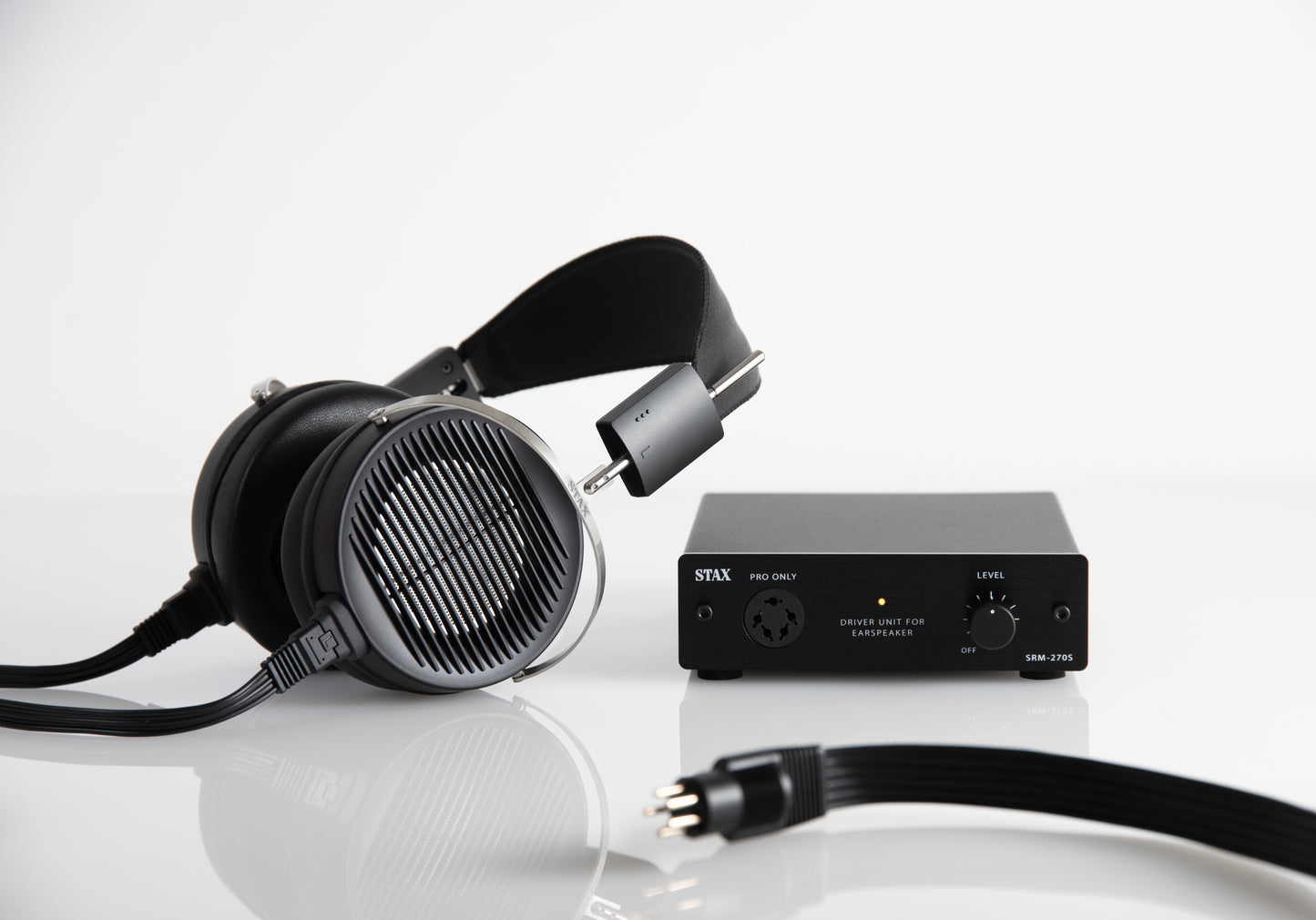

The SRS-X1000 is designed for audiophiles who want to fully immerse themselves in the world of electrostatic ear speakers without compromise. As the successor to our proven SRS-3100 system, the SRS-X1000 combines the new SR-X1 ear speakers with the newly developed SRM-270S driver unit, setting a new benchmark for entry-level electrostatic audio systems.

SR-X1 Ear Speakers: Pure and Intense Sound Enjoyment with:

• Extended Frequency Range: Reproduces audio from DC to 35,000Hz for a comprehensive listening experience.
• Minimal Distortion: A harmonic distortion of 0.01% or less ensures crystal-clear tones.
• Flexible Integration: The PARALLEL OUT connectors make it easy to integrate into existing audio systems – ideal for both music and movies.

SR-X1 (Ear Speakers):

• Type: Push-pull electrostatic, circular speaker with open back
• Form: Medium-sized, circular
• Fixed Electrodes: High-precision etched electrodes
• Frequency Range: 7–41,000Hz
• Capacitance: 110pF (including cable)
• Impedance: 145kΩ (at 10kHz, including 2.5m cable)
• Sound Pressure Sensitivity: 101dB/100V r.m.s. input/1kHz
• Bias Voltage: 580V DC
• Cable: OFC, 6-wire, parallel, low-capacitance, 2.5m
• Ear Pads: Genuine lamb leather (skin contact area), synthetic leather (attachment area)
• Weight: 234g (main unit only)

SRM-270S Driver Unit: The heart of the SRS-X1000, featuring:

• Optimized Heat Dissipation: A 3mm thick aluminum front panel and a larger aluminum chassis provide effective thermal management.
• High-Quality Connectors: RCA jacks and a durable aluminum front panel ensure an optimal connection.
• Low-Noise FET: Specially selected FET for the first-stage amplifier, complemented by a refined emitter follower at the output for maximum sound purity.
• Compact Design: Practical and aesthetically pleasing for easy placement and transport.

ZRM-270S (Driver Unit):

• Frequency Range: DC to 35,000Hz (+0, -3dB)
• Harmonic Distortion: ≤0.01% at 1kHz 100V r.m.s.
• Gain: 58dB (800x amplification)
• Maximum Output Voltage: 280V r.m.s./1kHz
• Input Impedance: 25kΩ
• Inputs: RCA x 1
• Output: Parallel out x 1
• Bias Voltage: 580V DC
• Power Supply: AC adapter included
• Power Consumption: 12V DC/500mA
• Dimensions: 132 (W) × 38 (H) × 153 (D) mm (excluding protruding parts)
• Weight: 540g

The Gateway to Unmatched Sound
The SRS-X1000 blends tradition and innovation, providing an easy, uncompromising entry into the world of electrostatic audio systems. Whether you're an experienced audiophile or a newcomer to high-fidelity sound – the SRS-X1000 offers an exceptional listening experience. Experience the depth and richness of your favorite music or movie scenes like never before: from soft whispers to powerful crescendos, the SRS-X1000 elevates your sound journey to a new level.
